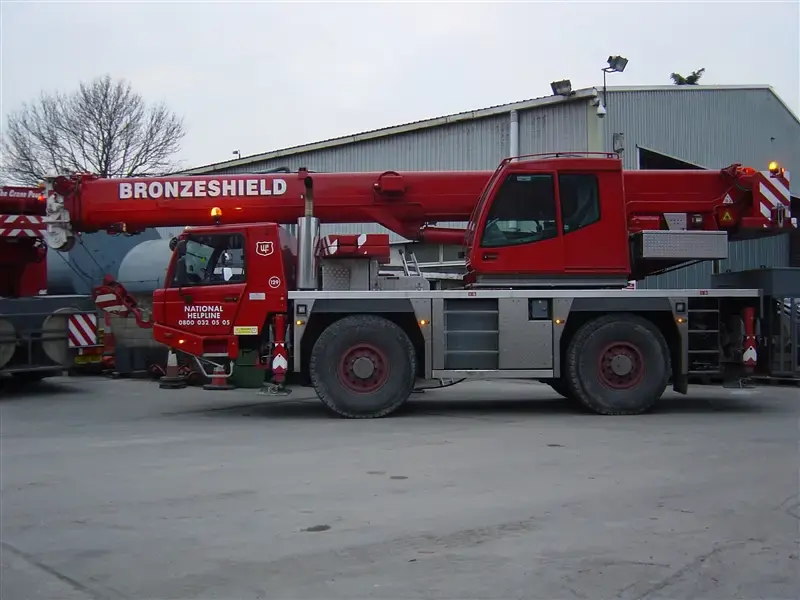

Tadano-Faun ATF40G-2
A compact two-axle all terrain crane rated at 40 tonnes, with a four-section telescopic boom from 10.45 to 35.2 metres and a 9 metre offsettable extension. Small enough to get onto a tight site and quick to rig once it is there.
Key figures
Full specification
| Class | All Terrain crane |
|---|---|
| Maximum lifting capacity | 40 t |
| Main boom | 10.45 m - 35.2 m, four sections |
| Boom extension | 9.0 m, offsettable at 0, 20 or 40 degrees |
| Counterweight | 6.5 t |
| Carrier | 2 axles, both steered and driven, 4 x 4 |
| Outrigger base | 6.0 m (4.3 m mid extension) x 6.45 m |
| Availability | UK-wide, 24 hours a day, 365 days a year |
Manufacturer configuration figures. Exact capability for your lift - radius, height, ground bearing and counterweight - is confirmed against the load charts by our appointed persons.
Built for the job
- Four-section 35.2 m telescopic main boom
- 9 m boom extension, offsettable at 0, 20 or 40 degrees
- Two-axle carrier at 16.5t per axle
- All axles steered and driven
- 360 degree continuous slewing
Main boom length, to scale. Every lift is planned to the manufacturer load charts by our appointed persons.
Contract lift or hired & managed
Contract Lift
- Full lift planning by our expert appointed persons
- Crane, operator, supervision and slinger provided
- Method statements and risk assessments included
- Insurance for the lift carried by Bronzeshield
- Ideal when you want one accountable partner
Hired & Managed
- The 40 tonner with our qualified operator
- Working under your appointed person and lift plan
- Flexible day-rate hire
- 24 hours a day, 365 days a year availability
- Ideal for experienced contractors with in-house planning
Frequently asked
If you want one accountable partner to plan and carry the lift, choose a Contract Lift - we handle the lift plan, method statements, supervision and insurance. If you have your own appointed person and lift plan, take the crane Hired and Managed with our operator. Not sure? Our hire desk will point you the right way.
With 2 axles it needs suitable access and prepared ground for the outriggers and counterweight. We produce a swept-path analysis and a ground-bearing check as part of planning, and can advise on any enabling works before the crane arrives on site.
Yes. The Tadano-Faun ATF40G-2 is always supplied with one of our qualified CPCS operators, whether you hire it on a contract lift or hired and managed basis.
The heavy-lift cranes are in demand, so the earlier the better - but our hire desk is open 24/7 and we will always try to help at short notice. Call us to check availability for your dates.
Related cranes
Need the 40 tonner on your project?
Our hire desk is open 24 hours a day, 365 days a year. Tell us the load, the radius and the site - our planners will do the rest.
